BJ Mold Engineering and Design Team is at the foundation of what BJ Mold does best: finding innovative and creative solutions to help speed customer's injection molded products to market. For each project, The chief

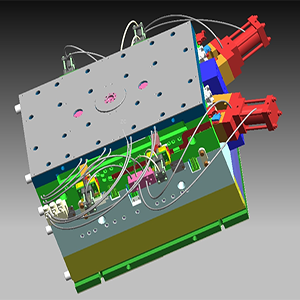

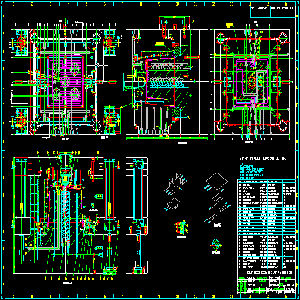

engineering manager lead the team creates tool design models that have complete associativity throughout all of the different components of an assembly. This means that both major and minor changes to a product can be made and reviewed with the customer through all stages of design and build of a precision injection mold. Design changes are communicated electronically in real time to the machine programmers who are shaping the steel and can be communicated to customers.
BJ Mold Engineers routinely recommend solutions to customers that can increase product performance, product lifecycle, reliability, and profitability both for BJ Mold and for the customer.

BJ Mold design specialists use mold simulation software to optimize the product design and manufacturing process and perfect it, before the first piece of steel is cut. This process reduces the time needed to condition the mold and speeds the product to market.

Engineering Experience

BJ Mold design goal is save customer money(short cycle time, never the repair cost) to must consider the reliable construction of action, good cooling system, good venting, good plastic flow for each mould so that we can provide the best quality moulds to our customer.

Hot Runner System
Stripper and Floating Cavity Plate Molds
Multiple Slide Action Molds
Unscrewing Molds
Double molds
Die casting molds
Insert Molds
Face Mounted quick Change Tooling

Expandable and Interchangeable Tooling

Engineering Software

Pro/Engineer
UniGraphics4.0
Primary CAM Software
Promill8.0 for high-speed precision machining of cores/cavities and electrodes
UG CAM for CNC milling centers.

Sending Plastics Engineering Files to BJ Mold
BJ Mold provides design assistance, engineering services and complete project management for precision injection molded plastics products through out the design, custom mold build, plastics production.

RFQ FILE FORMATS
Pro /Engineer (Wildfire 3 or earlier) q4.1

Unigraphics (NX4.0 or earlier)
Solidwork2009
STEP
IGES
DXF
AutoCAD (Rev.2008)

If available, please include: 3D engineering file and/ or 2D print Resin type and color Type of finish Anticipated yearly part volume(s)
If you have any difficulties providing us with compatible file formats or if you have larger files, please contact us. We will be happy to provide ftp site instructions.
